Introducing Tesla Powerwall 2

MC Electrical are proud to be Tesla Powerwall Certified Installers

Tesla Powerwall 2

Tesla Powerwall 2 (AC-coupled) retrofitted to an existing system or installed with a new solar system



Ask us about the $750 rebate on Tesla Powerwalls today

Tesla Powerwall 2

If you are looking to store your excess solar power for use at night, Tesla Powerwall is the real deal. It’s a beautifully designed battery, but more importantly, it’s designed to last.

The biggest issue with any battery is the heat that is caused on charge and discharge. The better the heat is managed in a battery, the longer the battery will last. At best, other solar storage batteries will use a fan to cool the batteries down. Tesla, on the other hand, use what they call “active cooling” and pump a liquid coolant around the cells that make up Powerwall. It is the active cooling that is the reason the warranty can be so generous. A full 10-year warranty with unlimited cycles. This warranty is not matched by any other battery in the industry.

It shouldn’t come as a surprise that Powerwall is so beautifully functional. The founder of Tesla, Elon Musk (amongst his many other achievements) is responsible for sending the first commercially funded vehicle to the international space station. Soon enough, his fully electric, auto-piloted, Tesla model 3 car will be commonplace on our streets. Mr Musk knows a thing or two about engineering for quality.

Solar Self Consumption

Always Connected


Touch Safe

Back-up Power

Flexible Installation

Grid Independence

Long Life

Weather Proof

Powerwall 2 Benefits

Increasing self-consumption of solar power generation –The problem with solar is nighttime. It’s not worth sending your power back to the grid for as little as 6 cents only to buy it back at night for 26 cents. Powerwall solves this problem by storing excess solar electricity during the day so you can use it at night.

Load shifting – “Time-of-use” tariffs (T31 or T33) have been introduced as an option in Brisbane. On a TOU tariff, you will be charged more for power at dinnertime and less at midnight and lunchtime. If you have an off-peak tariff, we can program the Powerwall 2 to prioritise discharging during peak periods when electricity prices are higher, saving you even more.

Back-up power – When your street is in a black-out, you’ll be glad you have a Powerwall 2. A generous 13.5kW of backup power will be enough to get you by when the grid is down. Make sure a backup power option is included when you are quoted on a Powerwall 2.

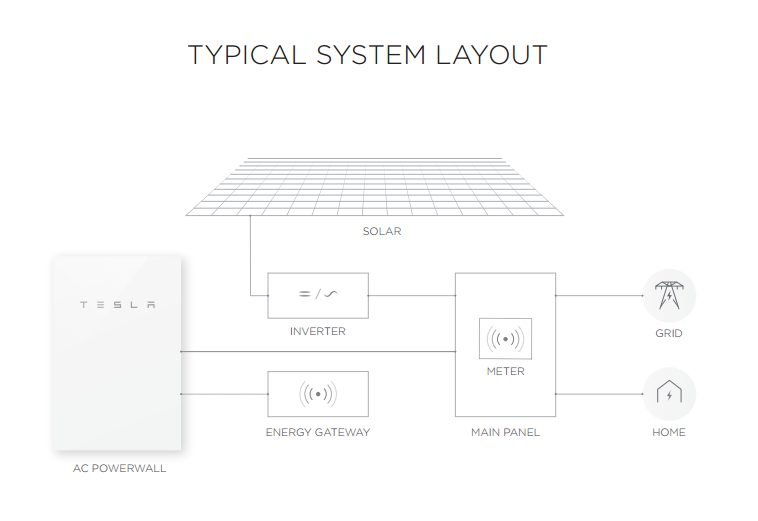

powerwall 2 layout

Powerwall 2 specs:

Mounting: Wall or Floor Mounted, Indoor/Outdoor

Inverter: Fully integrated Tesla inverter

Usable Capacity: 13.5 kWh Power: 5 kW continuous, 7 kW peak Round Trip

Efficiency: 90% Operating Temperature Range: –20°C to 50°C (–4°F to 122°F)

Warranty: 10 years Dimensions: 1150 mm x 755 mm x 155 mm (45.3 in x 29.7 in x 6.1 in)”

Specifications (PDFs)

Powerwall 2

As an AC-coupled battery, Powerwall 2 is suitable both for retro-fitting to an existing solar system and installing in a new home. While Powerwall has a built-in inverter, it does not replace your existing inverter that is connected to your solar panels. Your existing solar inverter is still required to change (or invert) the power from the solar panels from DC to AC. The inverter in Powerwall 2 is designed to change the AC  from your solar inverter back to DC, so you can charge your battery.

Solar storage is primarily designed so you can use your solar power at night, but you will still be connected to the grid in case you run the Powerwall 2 flat. Backup power (in case of a blackout) should never be assumed when you are purchasing any home storage battery. If you want to use your AC-coupled Powerwall 2 during a blackout you’ll need to have a good quality recent model inverter (such as the Fronius Primo). We will also need to install a Tesla AC Backup module and reconfigure your switchboard to suit. In backup mode, the Powerwall 2 will give you a limited amount of power on chosen circuits.
